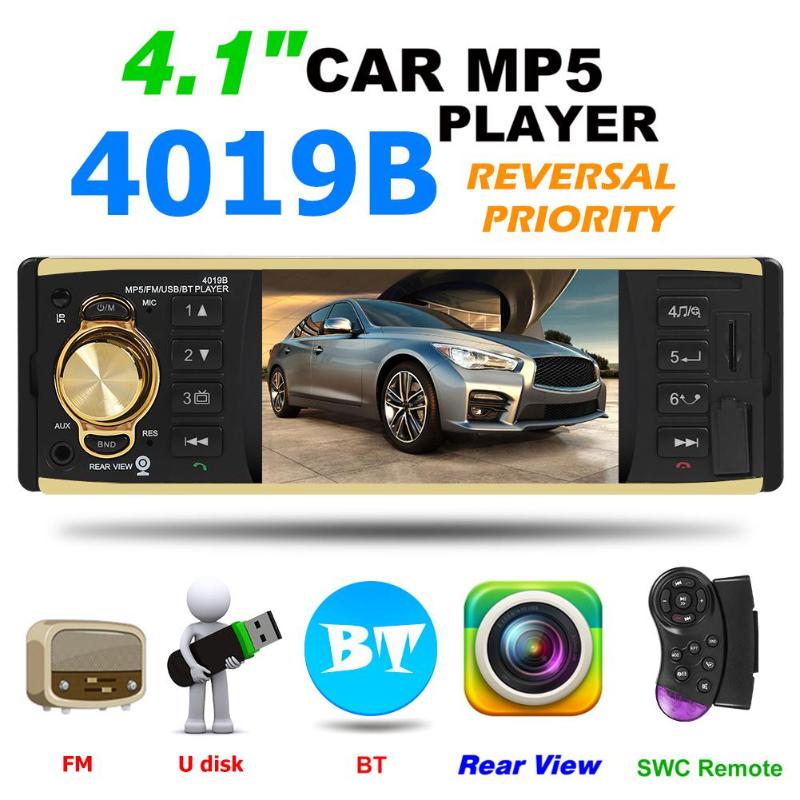

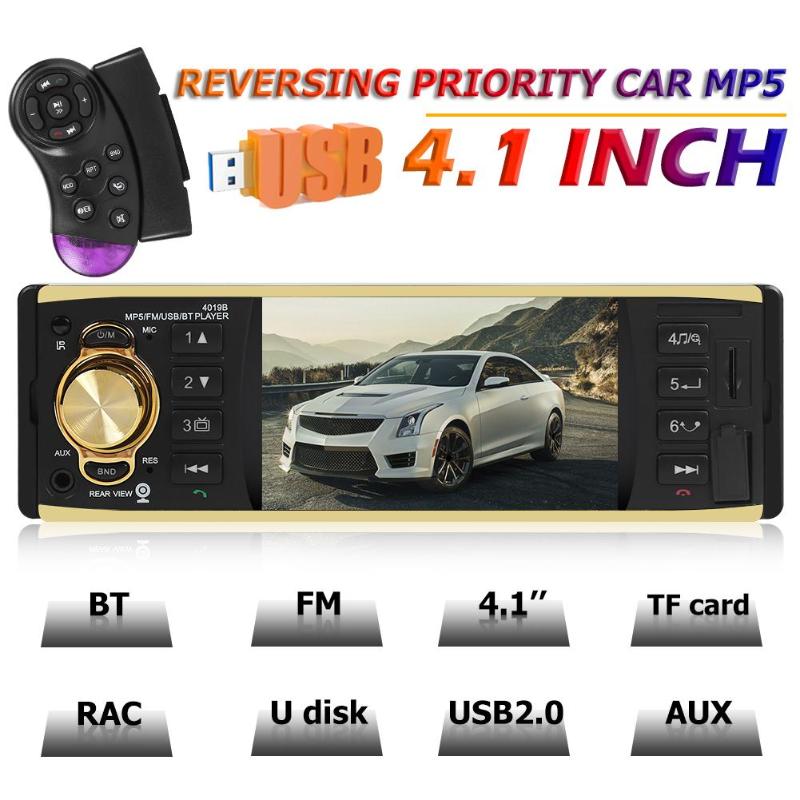

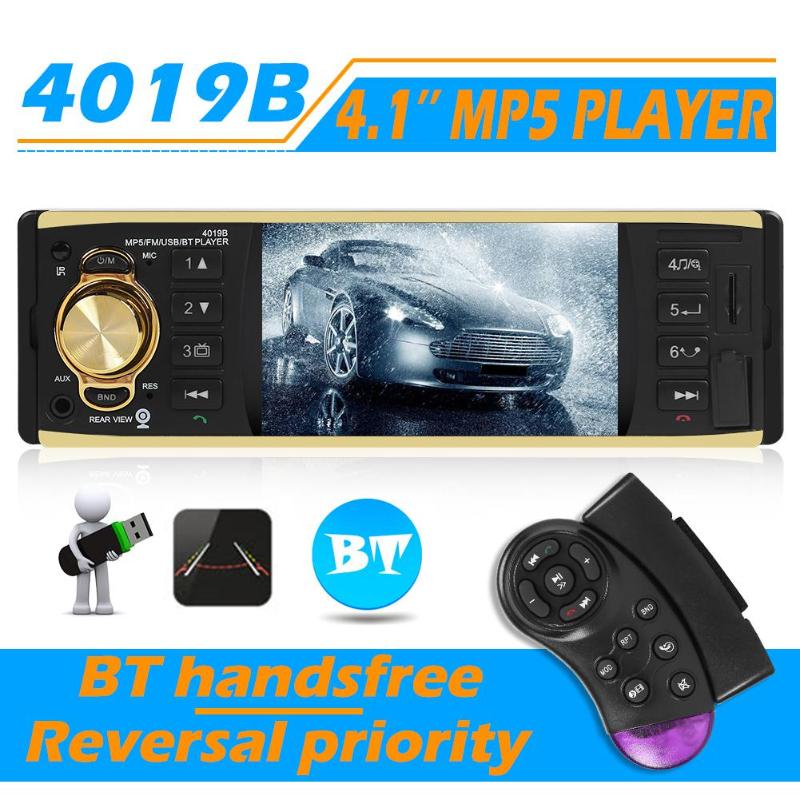

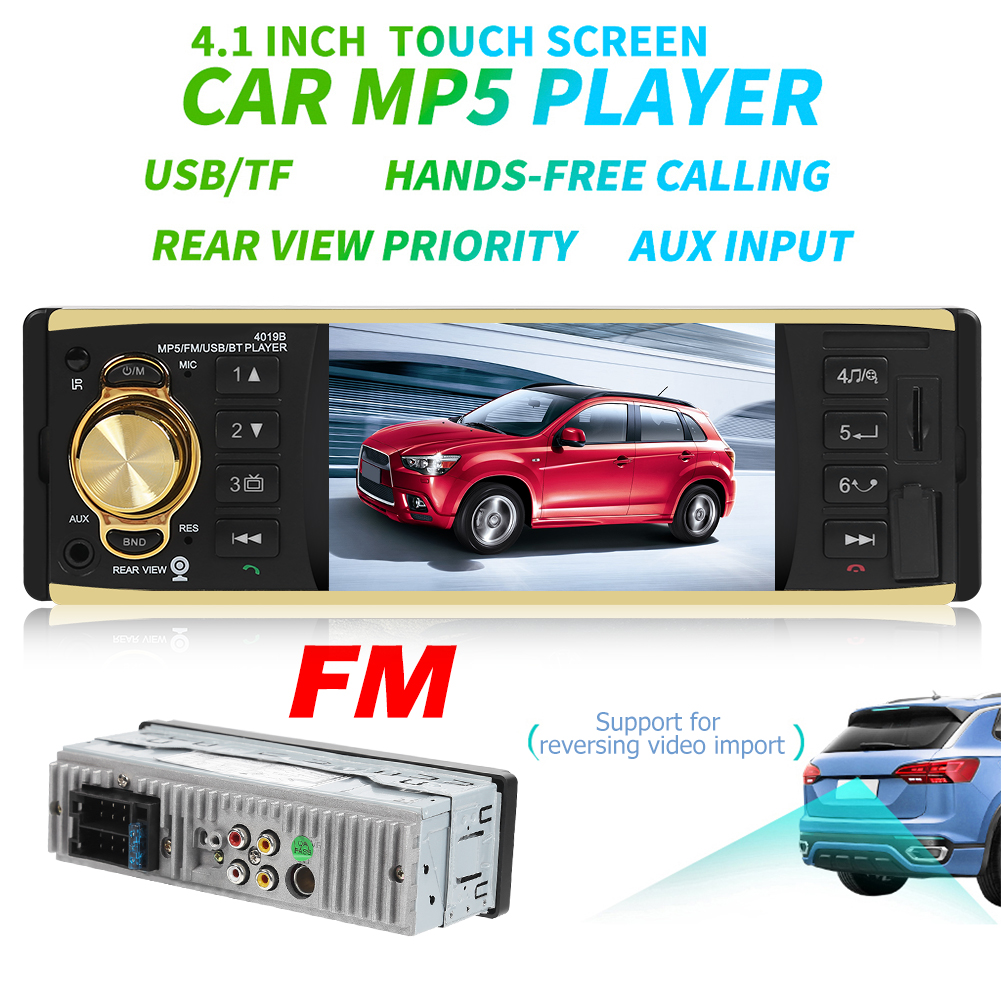

VODOOL 4019B 1din Bluetooth Car Radio Autoradio Stereo MP5 Player 4.1″ AUX USB FM Backup Camera Auto Audio Car Multimedia Player


bluetooth Car Stereo MP5 Player 4.1 inch AUX USB Radio Receiver In Dash Head Unit
1. Radio
2. Support reading memory cards and U disks (audio / video / picture)
3. AUX function
4. bluetooth function
5. RCA audio output can be connected to subwoofers
6. Rear view function

Type: A (with remote control+steering wheel controller, NO Camera)
B (with remote control+steering wheel controller+camera)
C (NO remote control, NO steering wheel controller, NO camera)
D (with remote control, NO steering wheel controller, NO camera)
Model: 4019B
Voltage: 12V
Configuration: No
Software solution: C200S
Screen model: 4.1 inch, standard definition
Screen size: 4.1 inches
Screen resolution: 854*480
Panel size: 188*58mm/7.40*2.28″
Panel light: colorful lights
Color box size: 210*80*163mm/8.27*3.15*6.42″ (kraft box)
Host depth: 65mm/2.56″
Single machine weight: 542g
Mirror link: Not supported
GPS navigation: Not supported
Radio band: FM
Radio chip: QN8035
Language: Chinese/English/French/German/Spanish/Portuguese/Russian
Power: 60W
Working temperature: -10~60°C
Reversing image: Support
Brake reminder function: Not supported
Steering wheel control: Not supported
bluetooth model: Version 4.0
Amplifier chip: TDA7388
Radio frequency: 87.5~108MHz
Video output: Support
Dual screen simultaneous display: Not supported
Built-in offline map: No
Wireless WiFi: No
TF card slot: Yes
GPS card slot: No
USB interface and version: Front panel USB 2.0
Reset button: Yes
Button: physical button
RCA terminal introduction: 2 channels of audio output, 1 channel of reverse input, 1 channel of video output
Front AUX audio input: Yes
DVR function: No
DAB function: No
OBD function: No
TV function: No
DVD movement model: No
4G/3G: No
Logo replacement: No
Supported audio formats: MP3/WMA/WAV/APE/FLAC
Supported video formats: RM/RMVB/AVI/MP4/MKV/3GP
Supported image formats: JPG
Factory password: Not supported

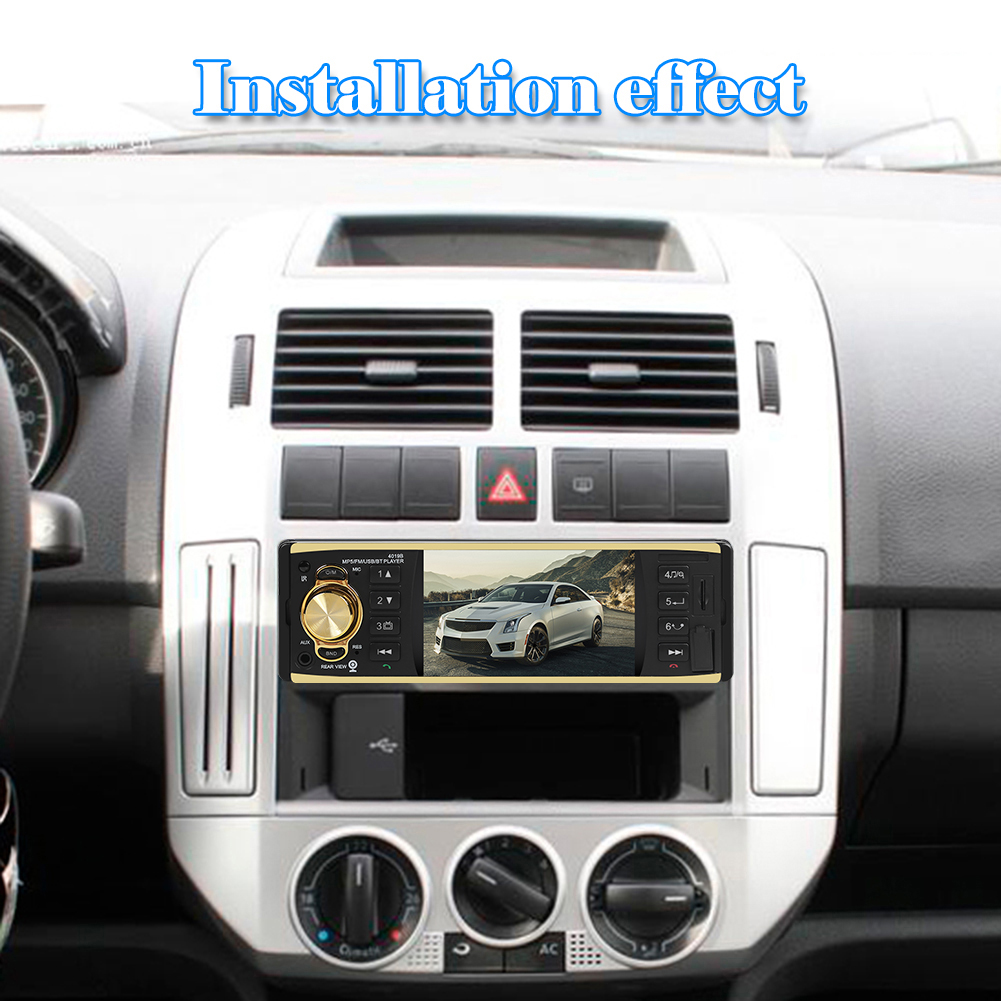

1. As long as the car stereo’s installation size and machine size match, it can be installed and used.
2. When installing the machine, be sure to connect the wire correctly. If the installation does not power on the machine, please connect the red wire and yellow wire to the 12V power supply positive pole, the black wire to the power supply negative pole, try to see if the machine can normally power on. If it can be powered on normally, then it may be due to the problem of wiring, you can ask for our help, so that you can use the product better.

1. There may be slight size deviations due to manual measurement, different measuring methods and tools.
2. The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.

1 X Host
2 X Power Cords
1 X Remote Control (Optional)
1 X Steering Wheel Controller (Optional)
1 X Camera (Optional)
1 X Manual
