KESS KTAG V2 ECM Master Version Online Titanium Programmer


10 ECU Tuning software:
Gift1: ECM Titanium with 26000+ driver(XP, WIN7 is supported, win 10 is not supported)
Gift2: WinOLS V2.24
Gift3: ECU Fault DTC Remover v1.8.5.0, and keygen
Gift4: Setup_DPF_EGR_Lambda_Remover V2017.05, and keygen
Gift5: ECU maps
Gift6: ECU Pinouts collection
Gift7: ECU Safe v2.00
Gift8: Universal Immo, and keygen
Gift9: IMMO Universal Decoding 3.2
Gift10: Keygen3.2-3.5
Live Test  :
KESS V2 V2.47 (1)
KESS V2 V2.47 (2)
Top 10 Reasons To Get V2.53 KESS V5.017:
1. It’s Master Version. SW Version: 2.53. Hardware Version: 5.017.  KESS V4.036 only supports car, KESS V5.017 can supportbike/car/truck/tractor !
2. It supports More 140 Protocols Than the HW V4.036 KESS.
3. You can use it Online and it will not damage the hardware.
4. SW support multi-languages: English, German, Spanish, Italian, Portuguese, French
5. Update Method: by Link to download
6. KESS V4.036 no token limited for some car, has token limited for some other car.
    KESS V5.017 has no token limited for all vehicles !
7. Working System: Windows XP Professional /Win7 / Win 8/ Win 10
8. With coverage of all major brands and protocols including Line, CAN, EDC17 and MED17 and for Ford J1850. KESS V2 is everything you need to work as a successful tuner at a very affordable price.
9. Read and write ECU via OBD2 port directly, no need disassemble ECU from the car, easy to use
10.KESS V5.017 can do more 140 kinds vehicle types or protocols than KESS V4.036
Kess V5.017 has several built in features and safeguards including:

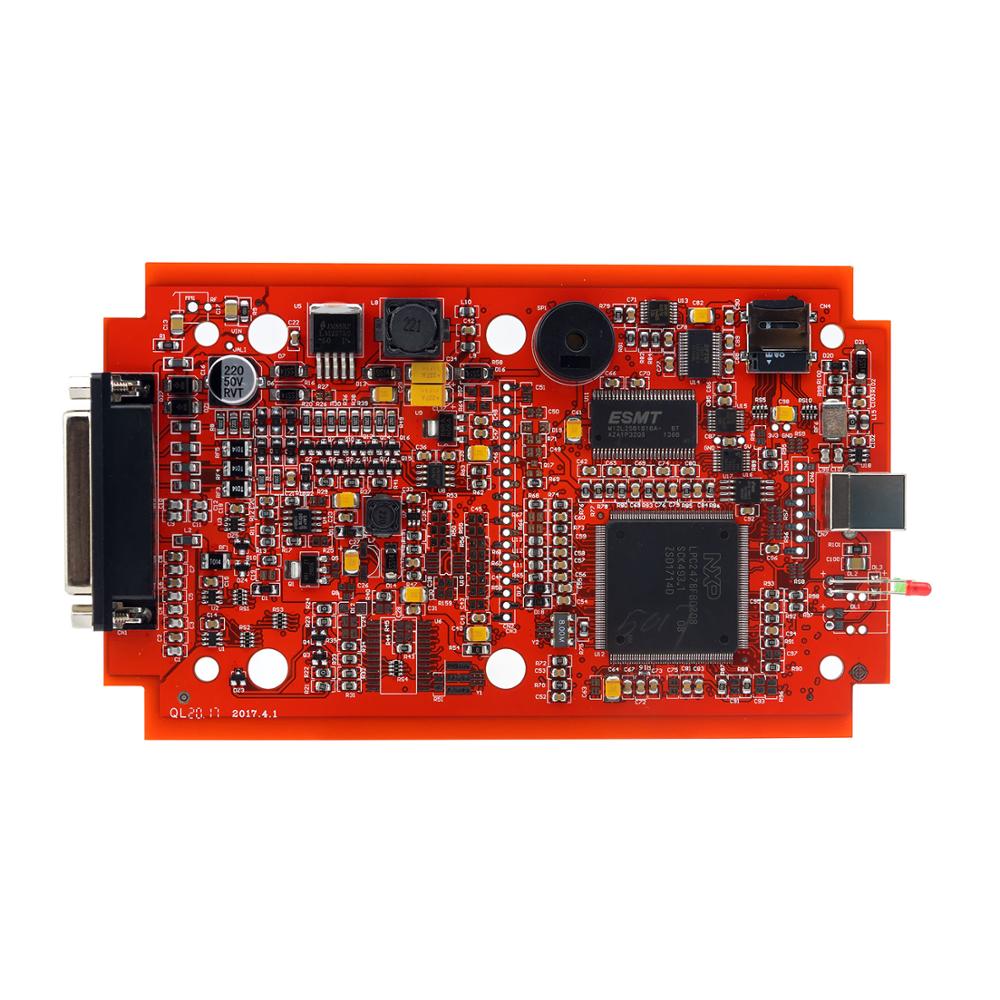

KESS V2 V5.017 EU Red PCB (2)
1.Check of the battery voltage in real-time
2.Full Recovery function in case of problems
3.Automatic correction of the Checksum, (where available)
4.Boot-Loader mode supported
5.Management of the programming counters
6.ScanTool function to remove DTC
7.Several options of reading/writing speed
8.Option to write full file/section of the map

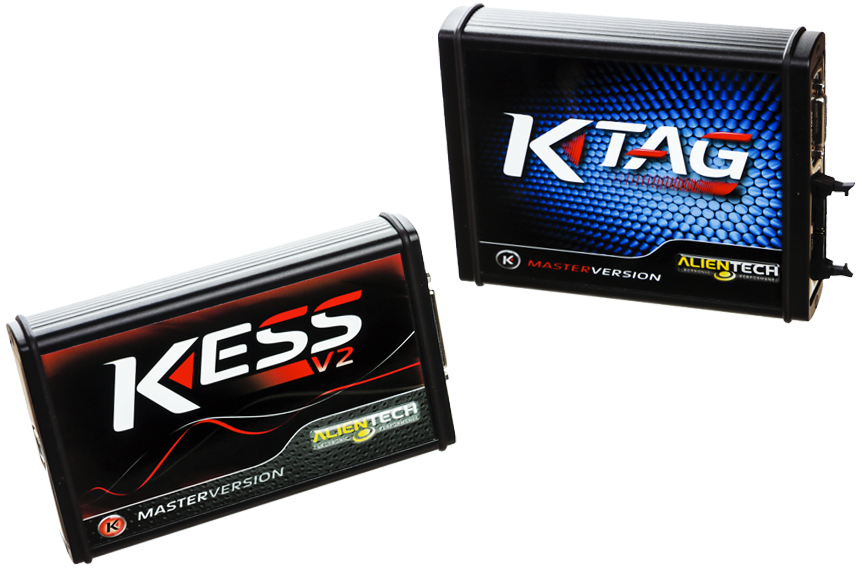

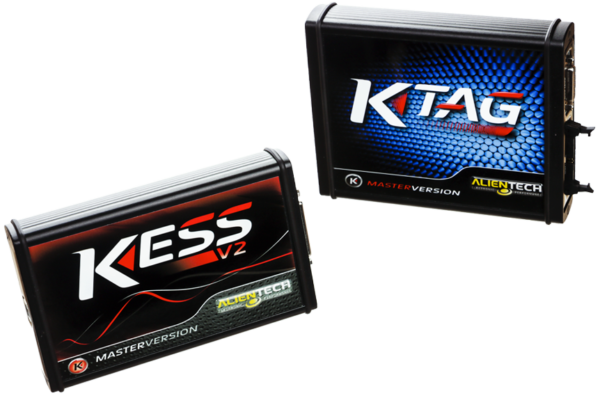

Kess or KTAG:
Kess or KTAG
Item Name KESS Red KTAG Red
Version Software V2.53/V2.47
Hardware V5.017
Software V2.25
Hardware V7.020
read/write ECU way OBDII via TRICORE or BDM etc.
Main function ECU remapping ECU remapping;
Fix/repair ECU
Vehicle supported mainly for home cars,trucks Cars/truck/tractor/motorcycle/Heavy Duty/Boat
What differences between kess V5.017 and ktag V7.020:
1. Different Connection Way :
For Most Vehicles, KESS V5.017 can read and write ECU via OBD2 Cable Directly, Easy To Operate !
KTAG V7.020 read and write ECU via TRICORE or BDM Or Other Mode with special cable, But the software will guide you how to operate !
KESS V2 V5.017 EU Red PCB (6)
2. Different Vehicle Coverage :
KESS V5.017 can not work For Toyo-ta.. Denso 76F00XX ECU Protocol, But KTAG V7.020 can work For Toyo-ta.. Denso 76F00XX very well !
KESS V5.017 can support some truck/tractor/motorcycle, But KTAG V7.020 can support much more truck/tractor/motorcycle and works better for Diesel vehicles than KESS V5.017 !
​If you mainly want to work for 24V truck and tractor , Ktag V7.020 is more suitable for you !
Installation steps:
KESS V5.017 does not need any installation instruction, just unzip the software and start to use.
1.Insert the CD.
kess v2.47
2.Copy ksuit v2.47/V2.53 to desktop and unzip it.
3.Connect kess with car and Computer.
4.Install the 2 drivers. Then plug in the USB cable again.
kess v2 ktag
Read ECU:
KESS (1)KESS (2)KESS (3)KESS (4)KESS (5)KESS (6)KESS (7)KESS (8)
Package List:

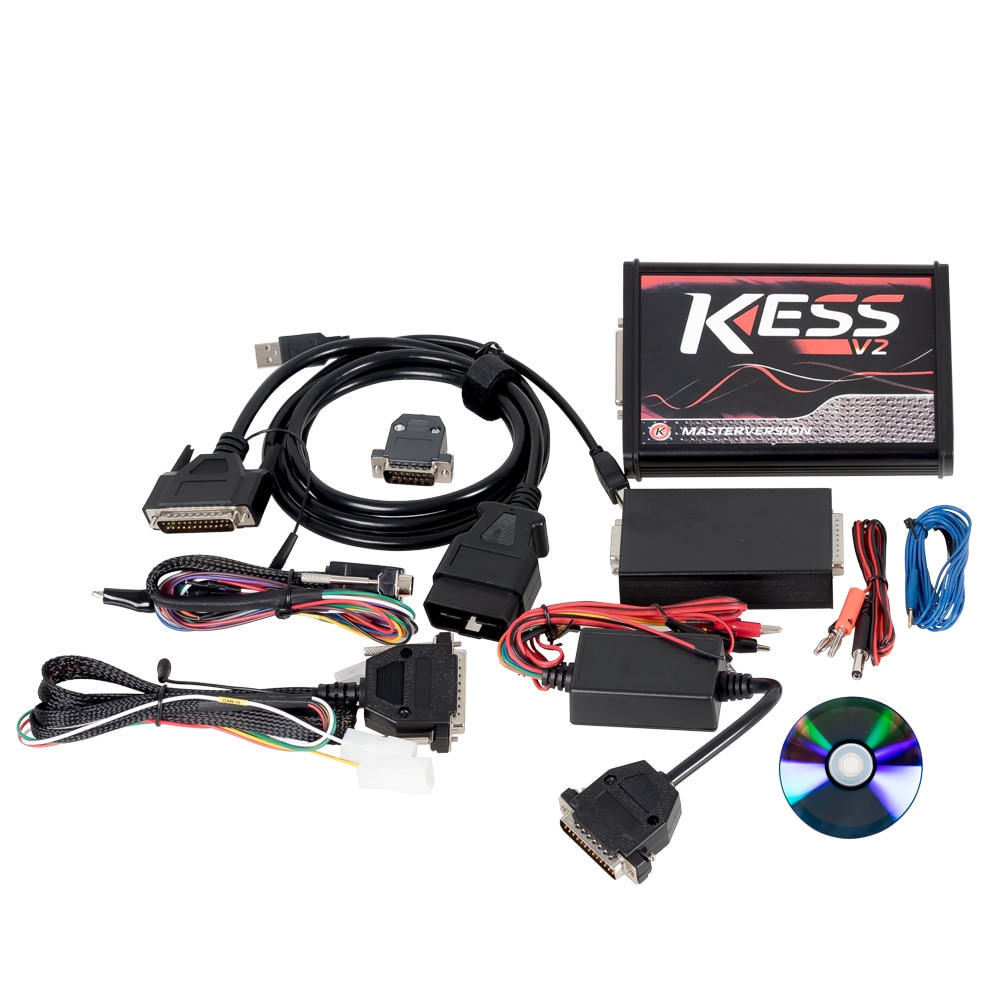

KESS V5.017 Package List:
1 x  KESS Main Unit
1 x Tricore Module
1 x OBD2 standard Cable
1 x 144300KCAN
1 x  K4 Cable
1 x 14P600KCK4
1 x  UNIVERSAL Cable
1 x 144300K201
1 x USB Cable
1 x CD
1 x Carton Box Outside

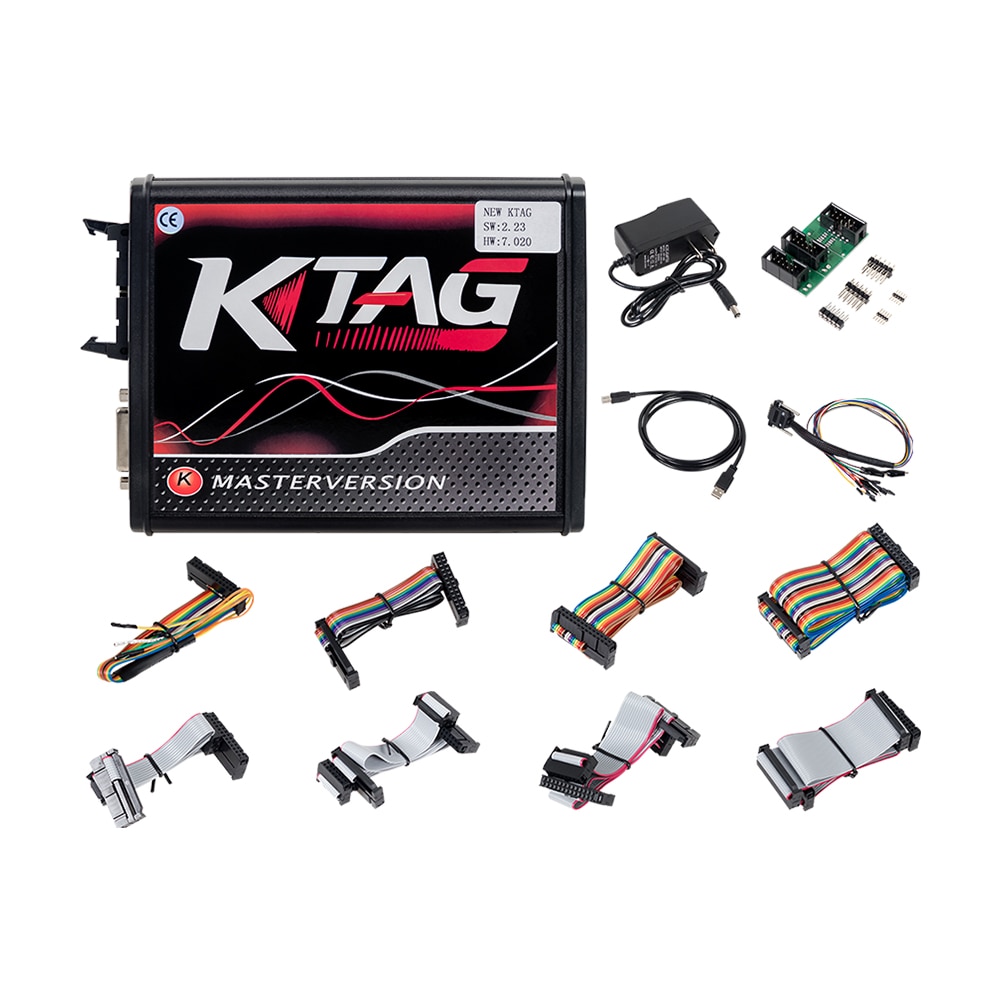

KTAG V7.020 Package List:
1 x  KTAG Main Unit

1 x GPT Cable

1 x 144300T 104
1 x 144300T 103
1 x 144300T 101
1 x 144300T 106
1 x 144300T 102
1 x 144300T 105
1 x 144300T 100
3 x Chips Inside
1 x Multi-Color Cable
1 x USB Cable
1 x 12V DC Power Adapter (Chinese standard adapter, not EU or UK adapter!)
1 x CD
1 x Carton Box Outside

BMD Frame New LED Package list:

1 x BMD Frame New LED
1 x Mess Arcylic Board(With LED&Connector)
4 x Probe Pens
4 x Connection Cable

22 BDM adapters Package includes:

1 14AM00T01M B*osch
2 14AM00T02M Del*phi DCM
3 14AM00T03M Bootlo*ader ST10xx
4 14P600KT04 Infine*on T*ric*ore EDC/MED17
5 14AM00T05M Mar*elli MPC55xx JTAG
6 14AM00T06M Delp*hi MPC5*5xx JTAG
7 14AM00T07M Den*so CN1 Boot
8 14AM00T08M De*nso CN2 Boot
9 14AM00T09M De*nso CN3 Boot
10 14AM00T10M De*nso CN1 AUD
11 14AM00T11M De*nso CN2 AUD
12 14AM00T00M De*lphi DCI
13 14AM00TBAS Bas*e Adapter 1.27
14 14AM00T14M Nex*usEFI T6 Lotus
15 14AM00TB02 Mag*neti Mare*lli BDM insert
16 14AM00TB01 Sieme*ns BDM insert
17 14AM00TB03 EDC7 BDM insert
18 14AM00T18M Mag*neti M*arelli MPC/SPC56xx
19 14AM00T13M Nex*us MPC5xx TRW ECU
20 VAG 1.6tdi – Siem*ens-Co*ntinental PCR2.1
21 14AM00T15M To*yota N*EC76F-20
22 14AM00T16M To*yota N*EC76F-26

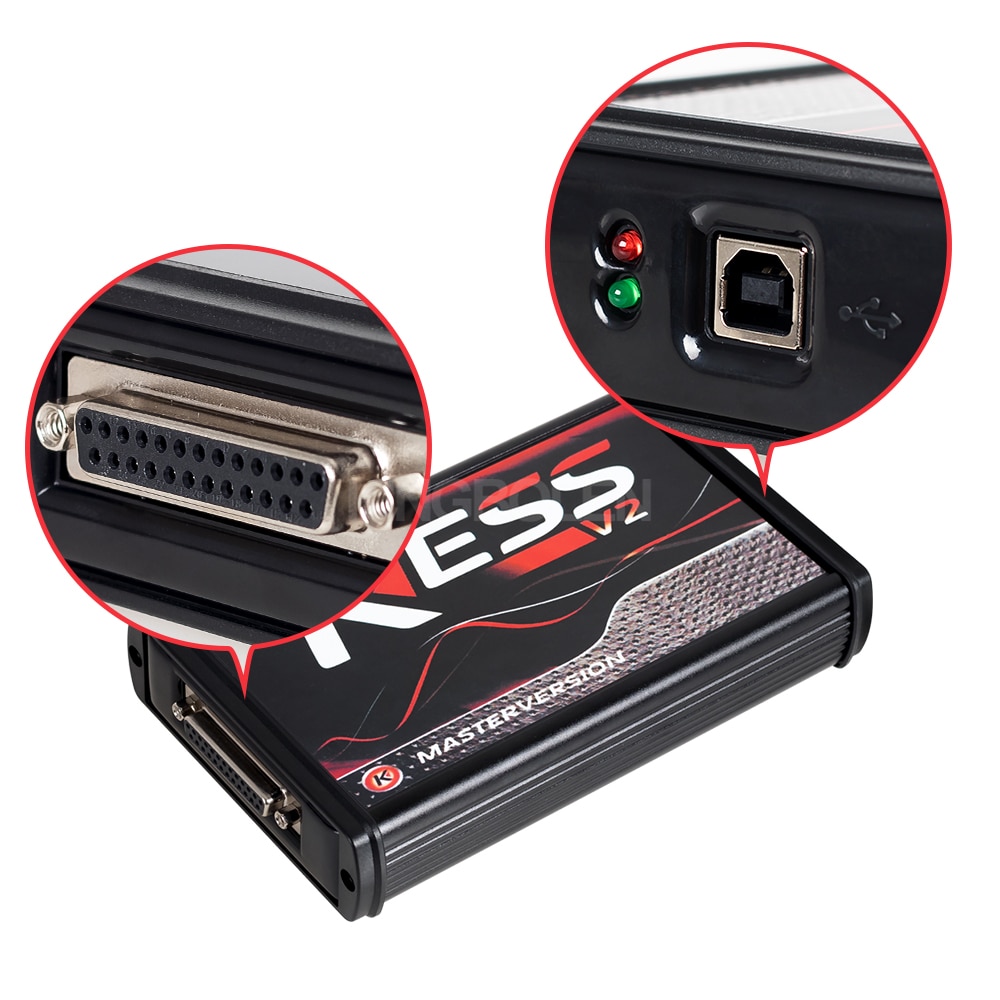

KESS V5.017 Red:
sp51-r (1)
KTAG V2.25 V7.020 4 LED KESS V2 V2.53 (1)KTAG V2.25 V7.020 4 LED KESS V2 V2.53 (2)

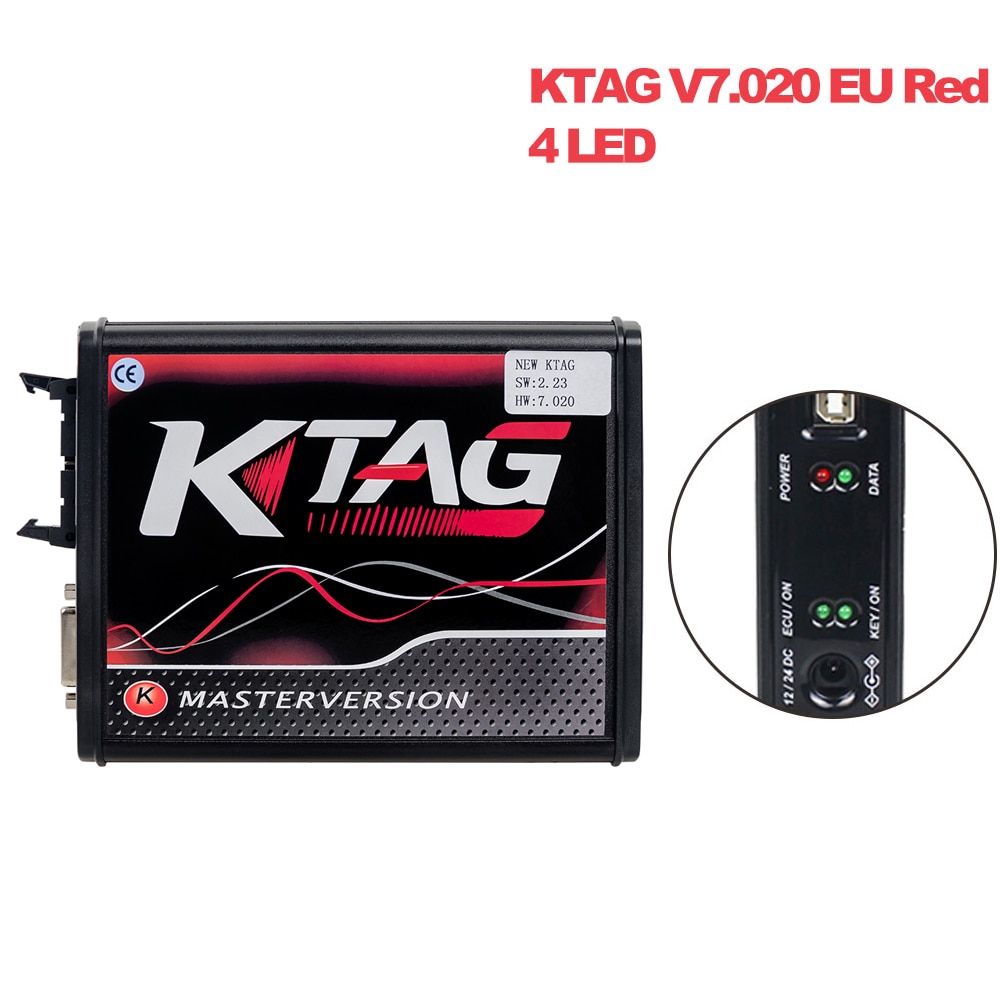

KTAG V7.020 Red:
SE89-L (2)
KTAG V7.020 (1) SE89-L (1)

BDM Frame:

BDM Frame (2)BDM Frame (1)

22 BDM adapters:

LED BDM Frame ECU RAMP Adapters(22pcs) (2)

BDM Probe Adapters (2)BDM Probe Adapters

SKU: -14 Category:

BDM Frame, Kess V5.017 eu Red, Ktag V7.020 eu Red, KESS and KTAG, BDM Probe Adapters
