Leading Brand! High quality!
No need to buy other Auto scanners in the next 10 years if you have Autel!
Autel AP200 Bluetooth OBD2 Scanner Code Reader with Full Systems Diagnoses, AutoVIN, Oil/EPB/BMS/SAS/TPMS/DPF Resets IMMO Service for Family DIY users ABS SRS ABS SRS ABS SRS ABS SRS ABS SRS ABS SRS

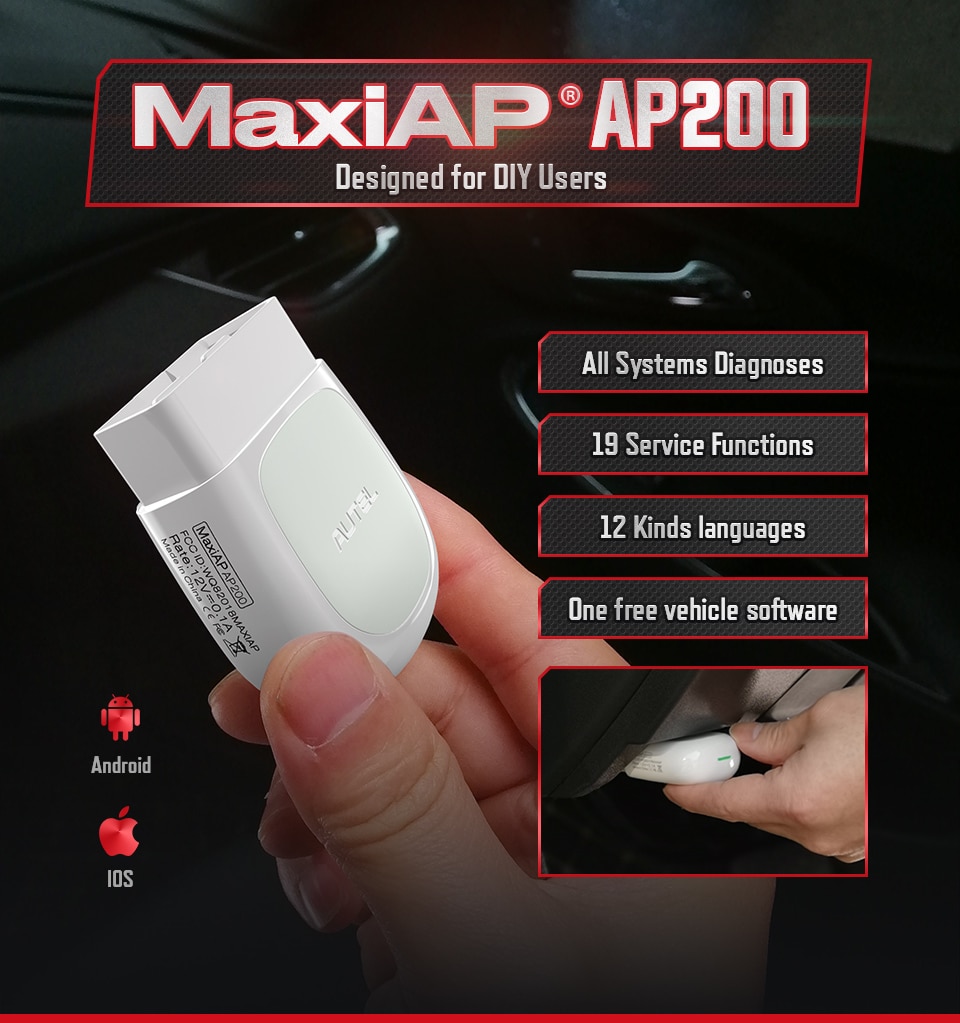

The wireless diagnostic interface MaxiAP AP200 is a small interface adapter used to connect to a vehicle’s diagnostic connector (DLC) and connect with the Android or iOS device for vehicle data transmission, making your Android or iOS devices (hereinafter referred to as device or devices) a powerful diagnostic tool. The MaxiAP AP200 package includes a Bluetooth (BT) OBDII connector and a MaxiAP200 app. It is the perfect Do-It-Yourself tool for customers looking for quick and easy diagnostic functions of all systems. It is almost compatible with all vehicle models of European, Asian, and North America makes.

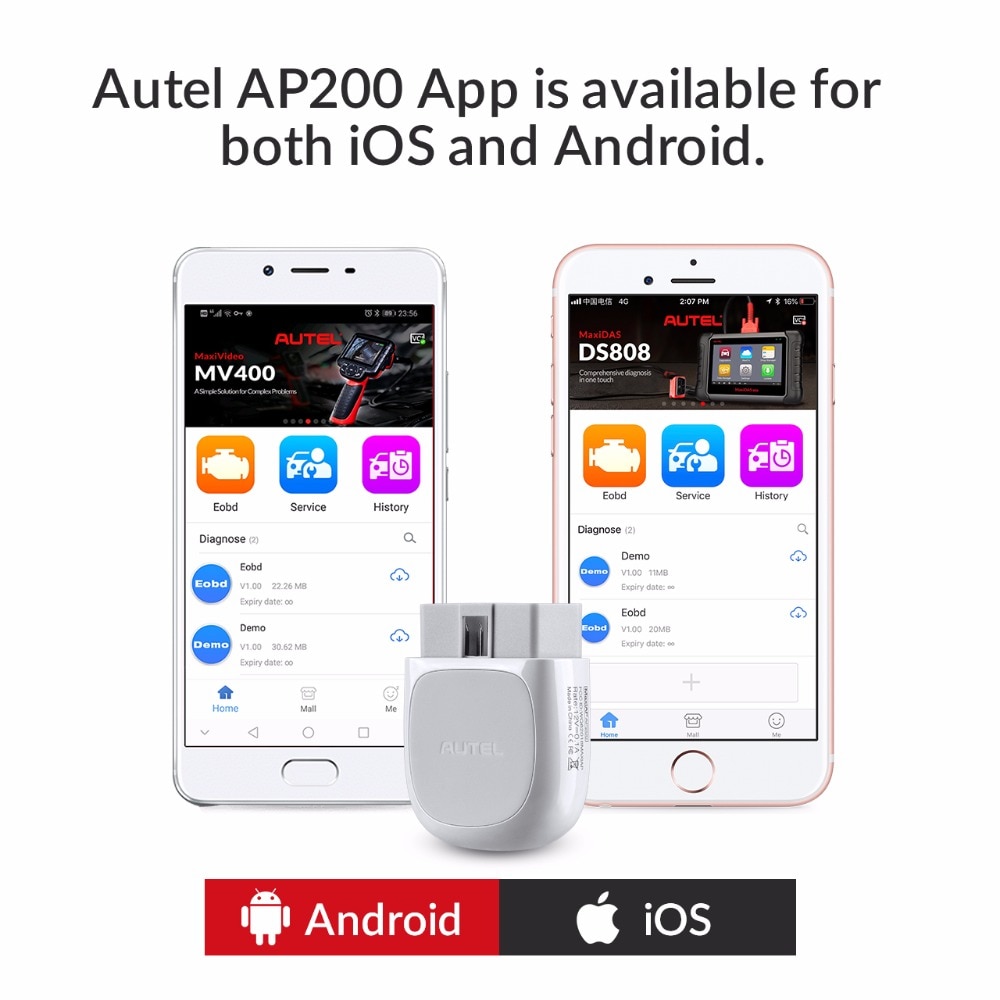

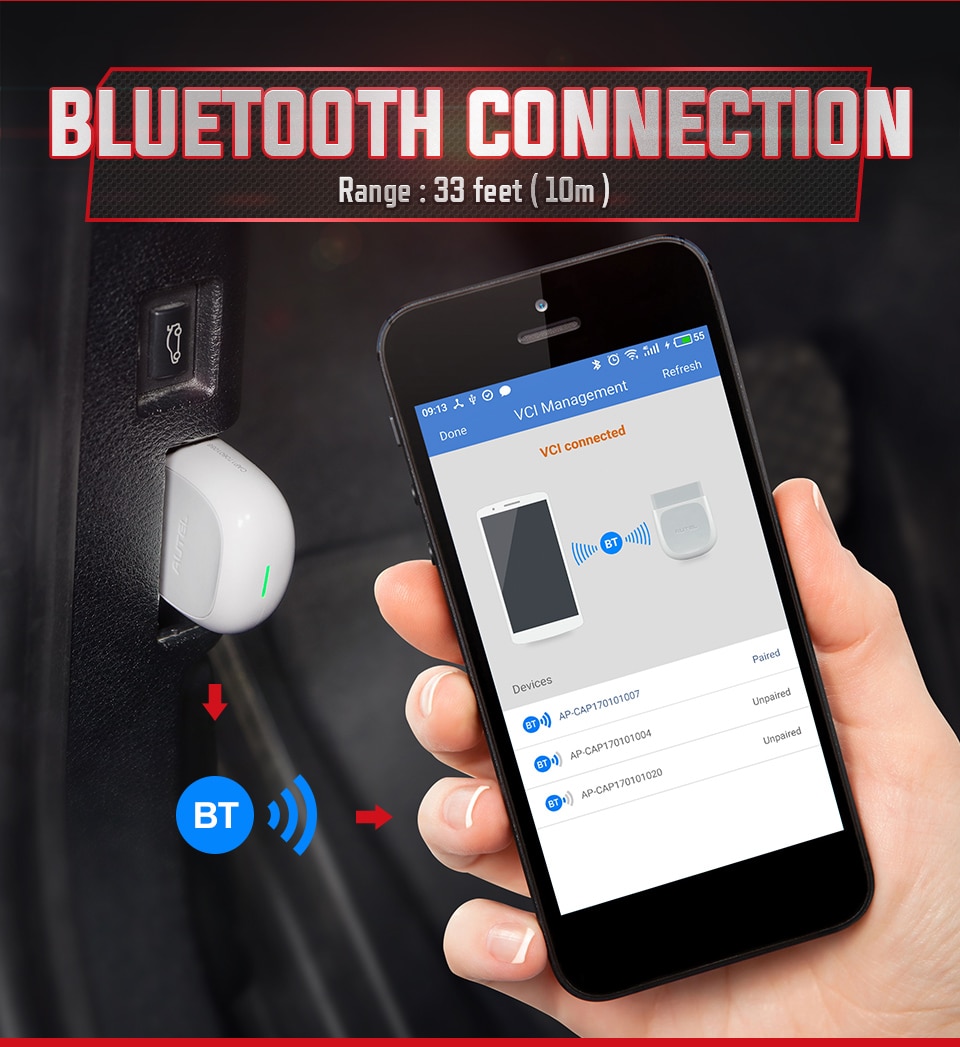

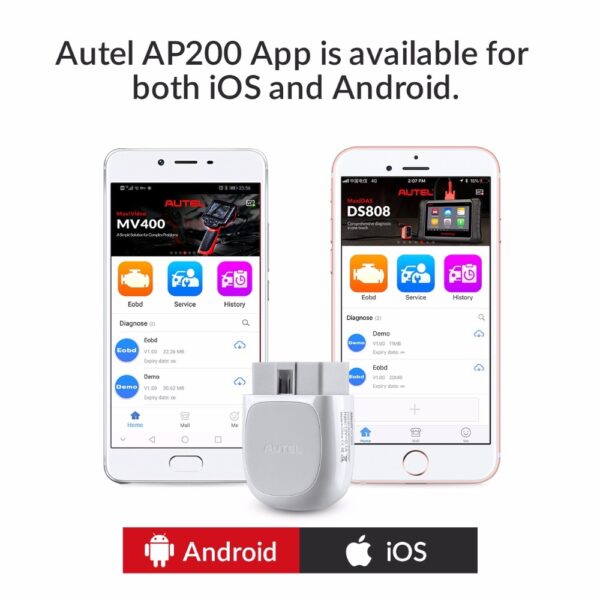

l BLUETOOTH CONNECTION: This portable OBD2 scanner is characterized by Bluetooth connection, and you can download the free APP “MaxiAP200” on your iOS or Android devices to get the car diagnosis going on without any worries about the compatibility.
English, traditional Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, Italian.
l ALL SYSTEMS DIAGNOSES
With superior systems diagnoses, this multipurpose obd2 scanner can be used to read all available systems’ ECU information to facilitate the vehicle diagnosis. The complete systems vary from different cars and they usually include Engine, transmission, ABS, SRS, SAS, TPMS, EPB and Fuel systems etc.
1. Read DTCs from the vehicle’s control systems to locate problem areas, and offer solutions;
2. Erase the codes easily after DTCs retrieving and certain repairs have been carried out;
3. Live data shows each parameter item displayed in analog, text, waveform graph modes etc.;
4. The active test used to access vehicle-specific subsystem and component tests.
l 19 RESET SERVICES:
This OBD2 scanner is specially designed to provide you with quick access to the vehicle systems for various scheduled service and maintenance performances. There is some commonly-used special reset services are listed for your reference:
Oil Reset –Perform reset for the Engine Oil Life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.
EPB Reset –Maintain the electronic braking system safely and effectively by deactivating and activating the brake control system, setting brakes after disc or pad replacement, etc.
BMS Reset –Evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.
SAS Reset –perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the sensor EEPROM.
TPMS Reset –quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS replacement and sensor test.
IMMO Service – Disable the lost vehicle keys and program the replacement key fob.
DPF Regeneration –Manage DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.
l COMPLETE OBD2 FUNCTIONS:
1. Read extensive current, pending and permanent codes in OBD system quickly
2. Clear detected fault codes and turn off the Check Engine Light efficiently
3. View graphical live data of vehicle’s computer module(s) for easy analyses
4. View the vehicle’s operating parameters at the moment a DTC is detected
5. Read I/M readiness status to have a vehicle inspected for state emissions compliance
6. Perform O2 sensor test to check fuel efficiency and vehicle emissions
7. Read the results of on-board diagnostic monitoring tests for specific components/systems
8. Retrieve the vehicle information of VIN, CINs, and CVNs completely
9. Perform the component Test by allowing initiating a leak test for the vehicle’s EVAP system
l SPECIAL AUTOVIN FEATURE: The Auto VIN function of the AP200 helps quickly reveal car’s info, including the vehicle type, country of origin, engine size, etc. and the report about the car info can be transformed as PDF file for better PC Printing.
l HISTORY RECORDING DISPLAY: While offering you detailed diagnostic result, this car scanner is capable of recording history diagnostic information and the history recordings can be used as an effective data reference in the period of car diagnosis.
It is almost compatible with all vehicle models of European, Asian, and North America makes.
l THE OPERATING PROCEDURES:
1. Download and install the app-MaxiAP200 in Google Play or App Store to your device;
2. Register and log in the MaxiAP200 APP;
3. Get one free car software through Mall after binding VCI for the first time;
4. Plug the MaxiAP200 tool into the vehicle’s Data Link Connector (DLC);
5. Turn on the vehicle ignition while turn the engine off;
6. Tap Me/Setting button of your device to pair the MaxiAP AP200 with your device;
7. Start to diagnose your car.
12-month warranty for any quality problems
1 * Main Unit
