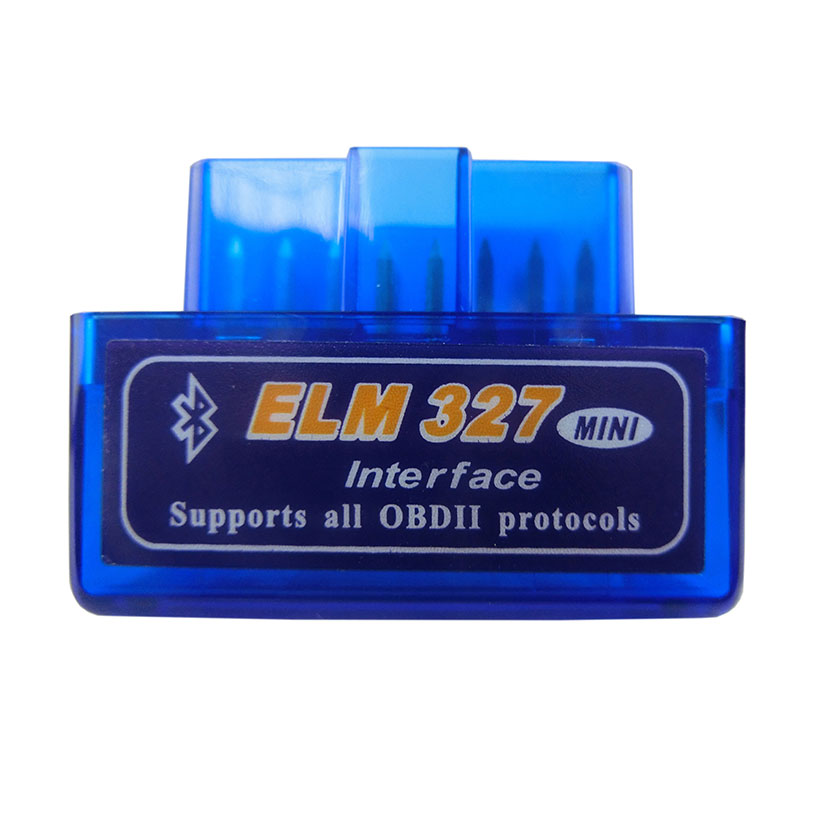

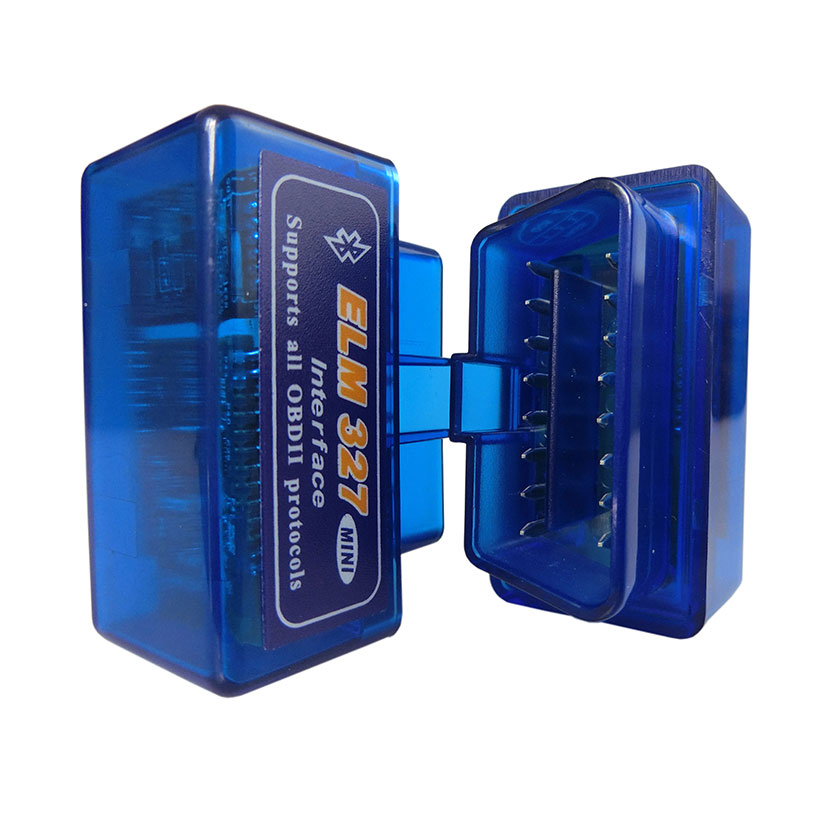

Super Mini Elm327 Bluetooth OBD2 V1.5 Elm 327 V 1.5 OBD 2 Car Diagnostic-Tool Scanner Elm-327 OBDII Adapter Auto Diagnostic Tool


$9.99 $18.50

  • 327Highlights:

    The newly developed wireless scan tool.

    It supports almost OBD-II protocols.

    It is the latest version 2.1

    Bluetooth connection, no Batteries, Cables, or Switches.

    Wireless (Bluetooth) 5~ 10 meters

    Retrieve Fault Codes (DTCs) and clear Check Engine lights.

    Can also be used with a PC with a Bluetooth Card.



    Functions:
    Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
    Display current sensor data, including:
      1.Engine RPM
      2.Calculated Load Value
      3.Coolant Temperature
      4.Fuel System Status
      5.Vehicle SpeedV2.1
      6.Short Term Fuel Trim
      7.Long Term Fuel Trim
      8.Intake Manifold Pressure
      9.Timing Advance
      10.Intake Air Temperature
      11.Air Flow Rate
      12.Absolute Throttle Position
      13.Oxygen sensor voltages/associated short term fuel trims
      14.Fuel System status
      15.Fuel Pressure
    1 (3)
    Features:

    Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

    Clear trouble codes and turn off the MIL (“Check Engine” light)

    Set the maximum number of responses to obtain

    Remove spaces from ECU responses (to speed data transmission)

    Store a unique identifier in EEPROM

    Set the CAN mask and filter with one command

    Easily switch between variable and fixed CAN message lengths

    Send CAN remote frames (RTRs)
    Multi-Protocol Support:

    1. ISO9141-2(5 baud init, 10.4Kbaud)

    2. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)

    3. ISO14230-4 KWP (fast init, 10.4 Kbaud)

    4. ISO15765-4 CAN (11bit ID, 500 Kbaud)

    5. ISO15765-4 CAN (29bit ID, 500 Kbaud)

    6. ISO15765-4 CAN (11bit ID, 250 Kbaud)

    7. ISO15765-4 CAN (29bit ID, 250 Kbaud)

    A.SAE J1939 CAN (29bit ID, 250*Kbaud)

    B.USER1 CAN (11*bit ID, 125*Kbaud)

    C.USER2 CAN (11*bit ID, 50*kbaud)

    *default settings (user adjustable)
    Vehicle Coverage:

    Works on most of OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles .

    But can’t support all OBDII cars.

    If you mind this,please do not place order.Thanks.

    For Alfa Romeo/ For Ad/ For Bentley/ For BMVV/ For C-adillac/ For C-hevrolet/ For Chrysl/For C-itroen/ For Daewoo/ For F-iat/ For F-ord/ For G-M/ For Hod/ For H-yundai/For Isuzu/For J-aguar/ For J-eep/ For Kia/ For Lad over/ For L-exus/ For M-azda/ For Mercury/ For Mini/ For N-isan/ For M-itsubishi/ For O-pel/ For P-eugeot/ For Posch/ For Re .nault/ For Ro ver/ For Saab/ For Seat/ For Sk-oda/ For Toyt/ For Vauxhall/ For V-olvo/ For VW

    CAR MODEL

    For your information:

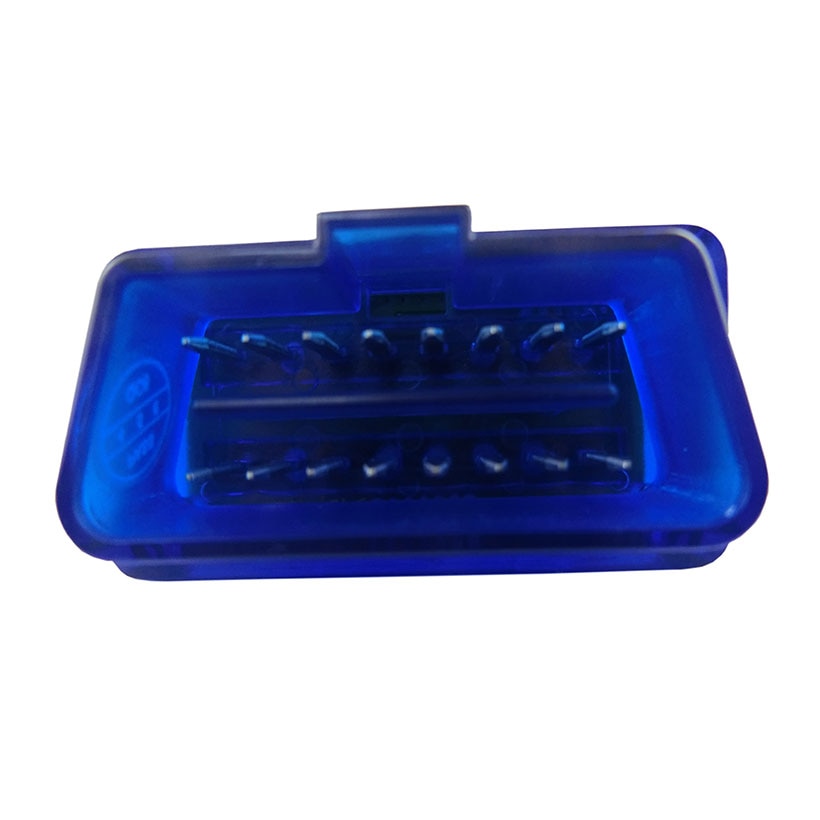

    For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant
    Software Included:

    Scantool_net113win (Full Version)

    EasyOBDII V2.2 (Free Version)

    OBD2Spy (Demo Version)

    Scan Master-ELM (Demo Version)

    wOBDCRAZY  (Demo Version)



    This hardware can match much other software still! But most of them are not free!

    Works for Windows98/ME/2000/XP/Vista & 7!

    This tool does not match abs and airbag system!



    How to connect with the Phone and Software?
    1.Android phone system requirement: Android 4.0-4.4 or higher
    ANDROID
    2.Software Installation: After insertion of ELM327 Install APP:Install—Continuous click “Next” continue the next installation—Click “Done” Install software
    INSTALL
    3.Connect Bluetooth:
    1)Turn on the Bluetooth switch

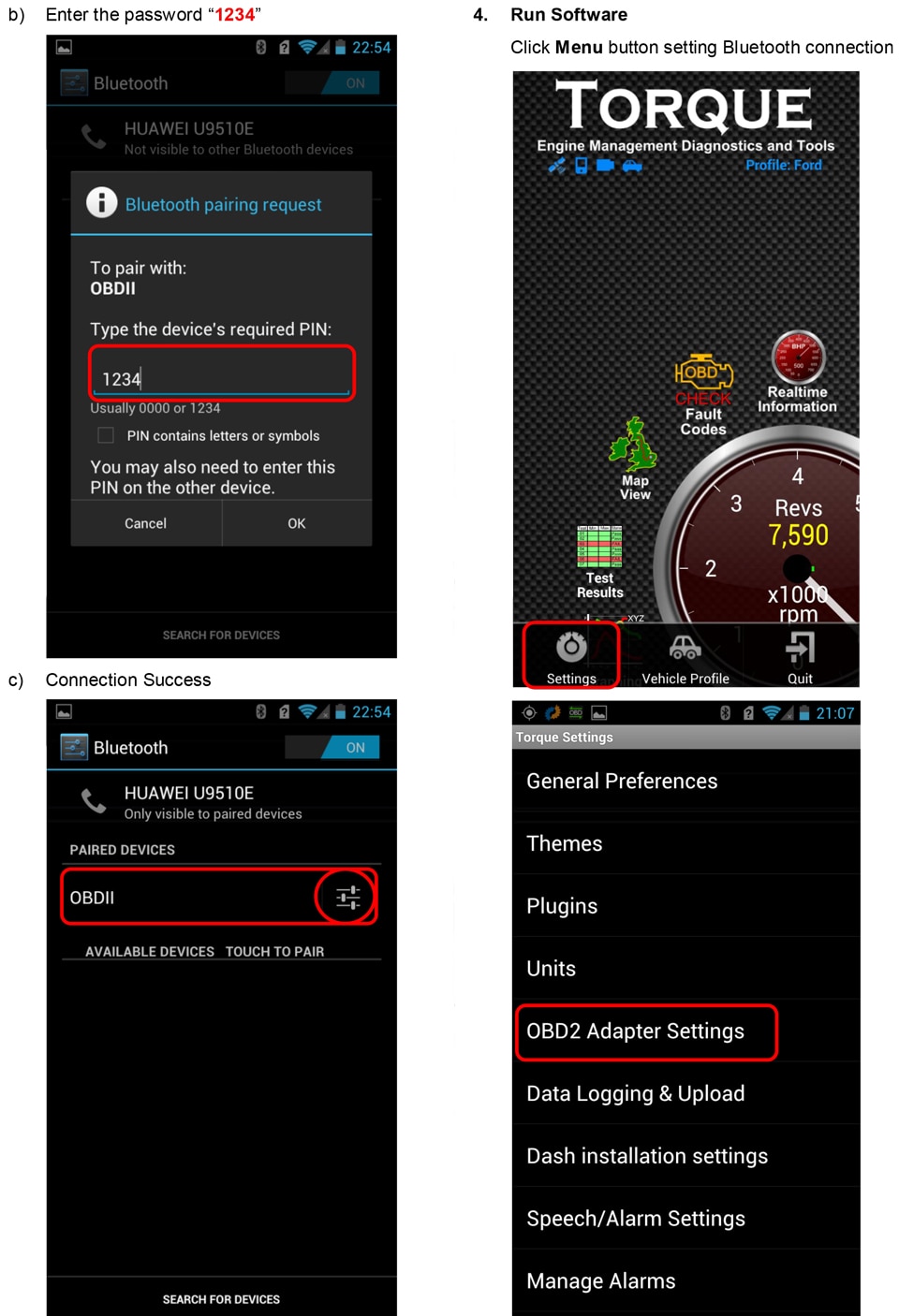

    2)Find “OBDII” and connect it,the password is: 1234 or 0000

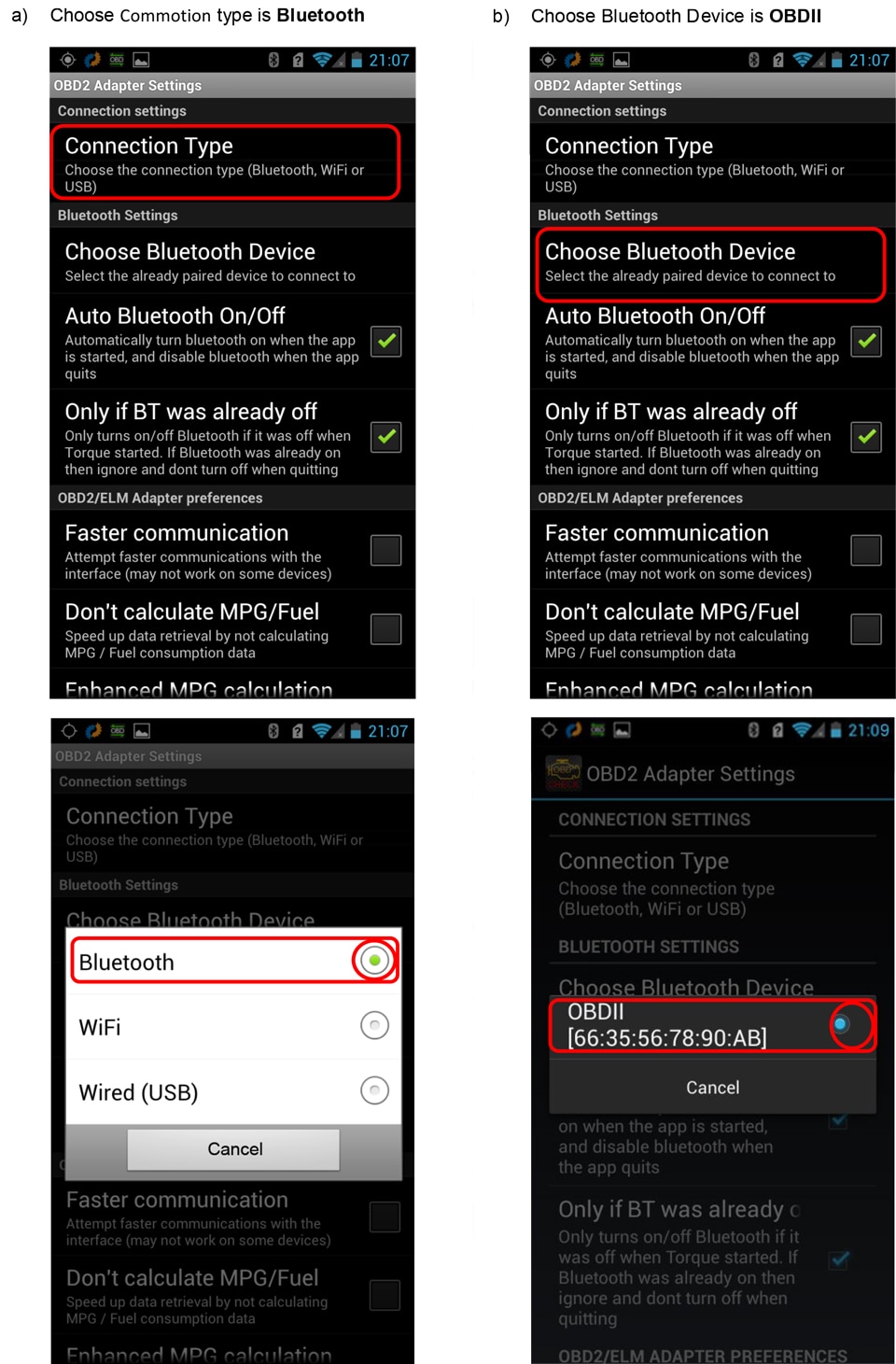

    3)Enter the Torque,and set the connection way:Bluetooth,then Choose Bluetooth Device: OBDII

    elm327

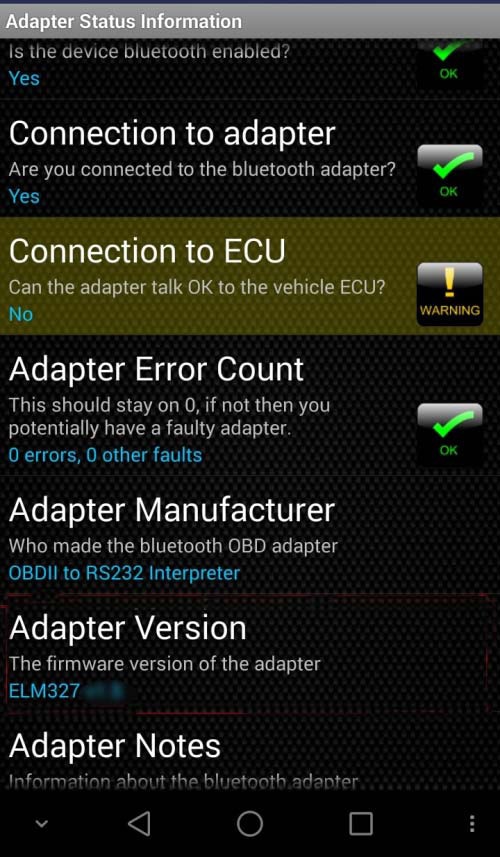

    Connection Failure selfcheck on phone:
    It is based on bluetooth 2.0,can’t support IOS (bluetooth 4.0).Viecar 4.0 supports Android and IOS.
    Please use Android System  V4.0 to latest version, and so on.
    1.Car is not supported.
    2.Engine is not ignited.
    3.You need confirm the connection way as below.
    Click Menu button setting bluetooth Connection:

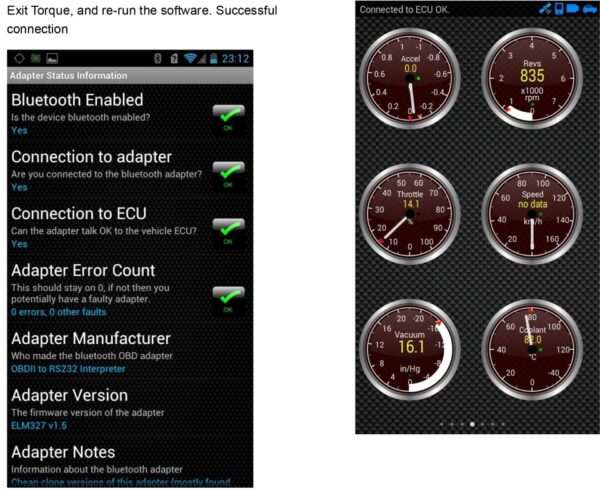

    Exit Torque,and re-run the software.Successful connection.
    settlement
    Specifications:
    Type: code readers & scan tools
    Output protocol: bluetooth
    Material : plastic
    Voltage: 12V
    Current: 45mA
    Wave frequency: 38400Hz
    Applicable scope: 5-10m/ 16.4-32.8ft
    Item size: 4.7 * 2.3 * 3.1cm/ 1.8 * 0.9 * 1.2in
    Item weight: 21g/ 0.7oz
    Total weight: 34g/ 1.2oz

    Packing List

    A.1*EOBD / OBD2 Bluetooth Diagnostic Interface

    B.1*CD.



    1.Please Pay Attention About Shipping:

    Choose shipping by “China Post Oridinary Small Packet Plus”,No track information (Can’t Monitor) after dispatch from China.

    If you don’t receive the goods in 60 days. Please contact us. We will extend the delivery date.

    Or you can pay extra money to choose China Post Air Mail with detail track information.



    2.Warm Tips:

    If the CD is broken or can’t readable, please contact with us to get software download link.

    If any questions, please feel free to contact with the seller, please never open a dispute before contact with the seller.

    Let’s keep good business relationship. Thanks!!



    *This one can’t support Diesel vechicles.

    *Can do most of OBDII gasoline cars,but can’t support all OBDII cars

    ELM327 can do MOST of the OBDII vehicles, but it CAN NOT do all models.
